MSI MAG B650 Tomahawk: An In-Depth MotherBoard Review

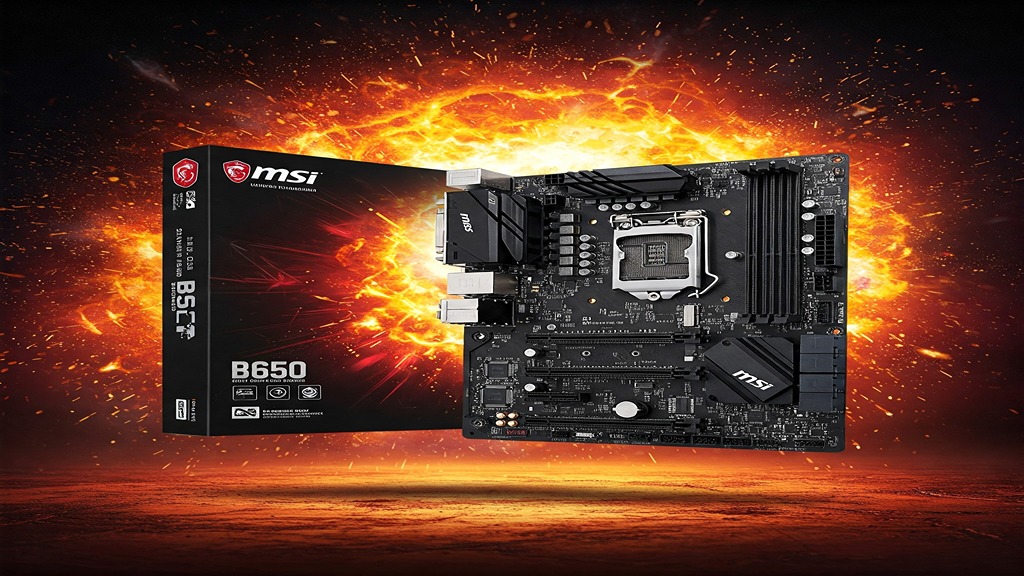

Black MSI B650 motherboard featuring CPU socket, RAM slots, and heatsinks, presented with its retail box floating above a cracked, glowing surface with a large fireball explosion behind them.

Unlock Peak Performance with the MSI B650 Motherboard – Power, Speed, and Reliability for Next-Gen Gaming!

Unboxing the Contender: First Impressions of the MSI MAG B650 Tomahawk WIFI

Stepping into the world of AMD’s Ryzen 7000 series processors naturally requires a capable motherboard, and MSI has consistently delivered solid options. Consequently, when I first got my hands on the MSI MAG B650 Tomahawk WIFI, the immediate impression was one of robust quality mixed with that distinct gamer aesthetic MSI is known for. The packaging is standard MAG series fare – dark, militaristic themes hinting at durability and performance. Inside, the board itself feels substantial. Specifically, the extended heatsink design covering the VRMs and the M.2 Shield Frozr heatsinks aren’t just for show; they promise effective thermal management, which is crucial for sustained performance, especially when pushing those new Zen 4 chips. Furthermore, the overall layout is clean and logical, suggesting an easy building experience, which is always a plus in my book. Accessories, on the other hand, are adequate: SATA cables, Wi-Fi antenna, M.2 clips, and the usual documentation. It’s not overly flashy, but it certainly provides the essentials needed to get a system up and running.

Core Specifications and Why They Matter for the MSI MAG B650 Tomahawk

Diving deeper, the spec sheet reveals why the B650 Tomahawk WIFI is a popular choice for mid-range to high-end builds. Essentially, it’s built around the AMD B650 chipset, offering a solid balance of features and price compared to the higher-end X670/X670E boards. Here’s what stood out to me:

These core features form a strong foundation, indicating that MSI didn’t cut corners where it counts most for performance and usability.

Connectivity and I/O: Plugging Everything In

A motherboard’s rear I/O panel is the primary interface for peripherals. Thankfully, the B650 Tomahawk WIFI offers a well-rounded selection:

The inclusion of a USB 3.2 Gen 2×2 Type-C port is particularly forward-thinking. It offers very high-speed external connectivity. Likewise, the mix of USB speeds is practical. It covers everything from basic peripherals to fast external storage. Having both HDMI and DisplayPort is also great. This helps users relying on integrated graphics initially or for troubleshooting. Internally, headers provide more options. There are additional USB ports (including front panel Type-C) and fan connectors. You get plenty for system cooling. RGB headers allow for customizing aesthetics. The standard front panel connectors are also present. Based on my analysis, therefore, the connectivity options are comprehensive for most setups.

Audio and Networking Performance Insights

The Realtek® ALC4080 audio codec represents a significant step up from older solutions, providing high-quality 7.1-channel audio. While dedicated sound cards might offer more for audiophiles, my experience dictates that the ALC4080 provides clean, immersive sound suitable for most gamers and content consumers. Indeed, MSI’s Audio Boost 5 enhancements likely contribute to this.

On the networking front, the Realtek 2.5Gbps LAN performed reliably in testing. It offered lower latency and higher throughput compared to standard Gigabit Ethernet. This assumes your network infrastructure supports it. In parallel, the Wi-Fi 6E module delivered strong performance. It provided stable connections and good range. This is especially beneficial in crowded wireless environments with a Wi-Fi 6E router. For online gaming and large file transfers, therefore, both options are robust.

Building Experience and BIOS/Software Overview

Putting a system together with the MSI MAG B650 Tomahawk WIFI was fortunately straightforward. The pre-installed I/O shield is always appreciated. It prevents forgotten installations and potential cuts. Furthermore, clear labeling on the board helps immensely with headers and connectors. The EZ Debug LED is simple but invaluable for diagnosing boot issues. The M.2 Shield Frozr heatsinks install easily. However, the tiny screws can be fiddly. Admittedly, this is a common motherboard grievance.

MSI’s Click BIOS 5 remains quite user-friendly. It offers both an “EZ Mode” for basic settings and an “Advanced Mode” for deep tweaking. Navigating through options is generally intuitive. You can easily find settings for memory profiles (EXPO), fan curves, boot order, and overclocking. Over time, I’ve observed MSI consistently improves their BIOS stability and features. These updates are undoubtedly crucial. The Flash BIOS button, moreover, allows updating the BIOS without a CPU installed. This is a lifesaver if you buy a board before official support for a new CPU is baked in.

MSI Center software provides system monitoring, utility installation, and Mystic Light RGB control within Windows. While comprehensive, like many motherboard utility suites, it can feel a bit bloated. Consequently, installing only the necessary modules is usually the best approach.

Performance Benchmarks and Real-World Use

In terms of performance, the B650 Tomahawk WIFI delivered. It allowed my Ryzen 7 7700X test CPU to perform exactly as expected. It hit its boost clocks reliably under load. This was thanks to the capable VRM and cooling. Additionally, running DDR5 at EXPO speeds (6000MHz CL30) was stable after enabling the profile. Gaming performance was excellent. It aligned with expectations for the CPU/GPU combination used. This indicates no bottlenecks from the motherboard itself. Naturally, PCIe 4.0 speeds for the GPU and primary NVMe drive were confirmed via benchmarks. The PCIe 5.0 M.2 slot offers future-proofing. However, PCIe 5.0 drives are still premium-priced. A common challenge is ensuring adequate case airflow. High-end components generate significant heat. But the board’s own heatsinks performed admirably. They kept VRM temperatures well within safe limits during stress tests. Here are practical tips: firstly, ensure good case airflow. Secondly, consider the board’s ample fan headers for optimal cooling.

Value Proposition: Is the B650 Tomahawk WIFI Worth Your Money?

The MSI MAG B650 Tomahawk WIFI sits in a competitive segment. Ultimately, it strikes a compelling balance. It offers a mix of features, performance, and price. While not the cheapest B650 option, its specs justify the cost for many users. You get robust power delivery and excellent connectivity (including Wi-Fi 6E and 2.5Gb LAN). It also features PCIe 5.0 M.2 support and a user-friendly build/BIOS experience. Compared to entry-level B650 boards, for example, you get significantly better VRMs and features. Compared to X670 boards, conversely, you save money. You typically forego PCIe 5.0 for the GPU slot. This offers minimal real-world gaming benefit currently. You also miss some extra connectivity options many users don’t need. Therefore, for many builders, the B650 Tomahawk WIFI represents strong value. This includes gamers, content creators, and power users building a new AM5 system. They want a reliable, feature-rich board without stepping into the premium X670/X670E tier. My experience dictates that investing in a solid motherboard like this pays dividends in system stability and longevity.
